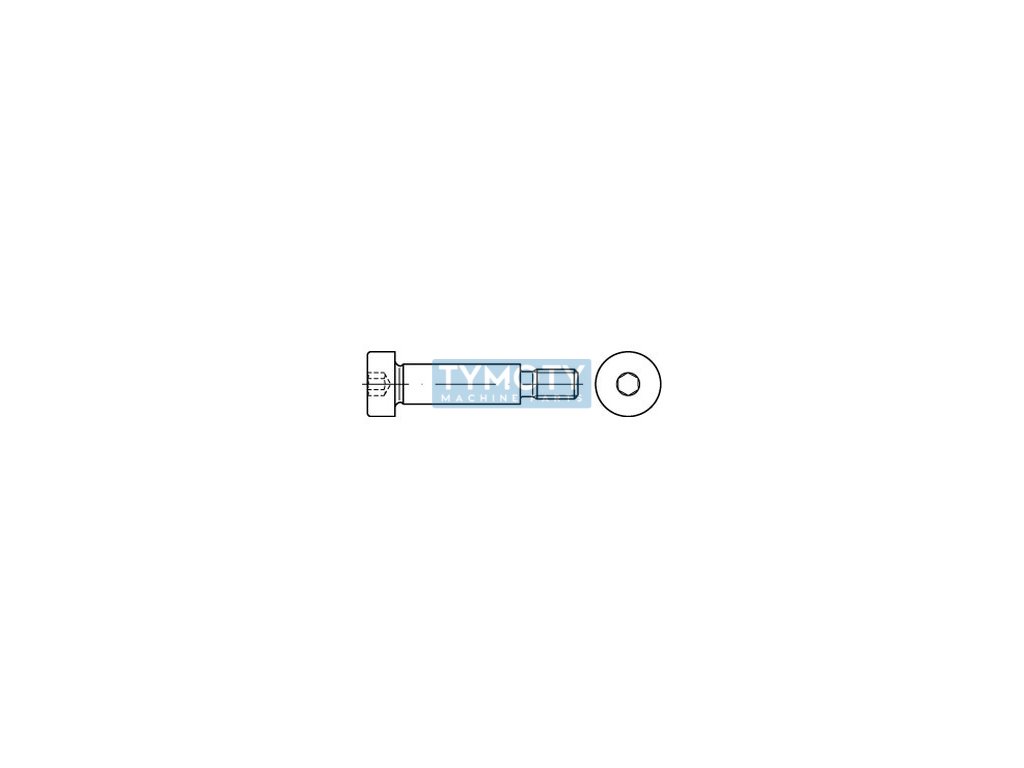

Countersunk allen screw ISO 7379 M5 f9 6x16-12.9
Code: 822905
Product detailed description
No product's description available

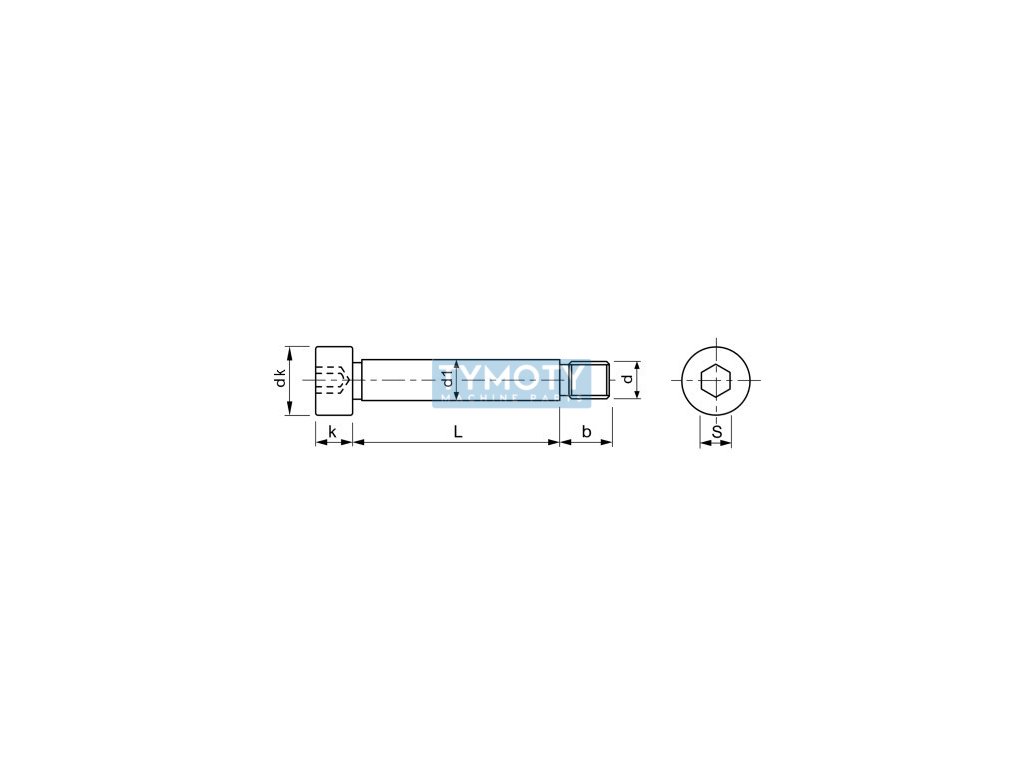

Additional parameters
| Category: | Fasteners > cap screws > Allen key, flush ISO 7379 > steel 12.9 without treatment, tolerance f9 |
|---|---|
| Weight: | 0.007 kg |
| Diameter D (mm): | M5 |
| Diameter d1 (mm): | 6 |
| Diameter dk (mm): | 10,22 |
| Fortress class: | 12,9 |
| Groove type: | internal hexagon |
| Head shape: | cylindrical |
| Height k (mm): | 4,5 |
| ISO standard: | 7379 |
| Length L (mm): | 16 |
| Material: | steel |
| Pitch: | 1 |
| Surface finish: | without modification |
| Thread length b (mm): | 9,5 |
| Thread type: | metric |
| Width s (mm): | 3 |
