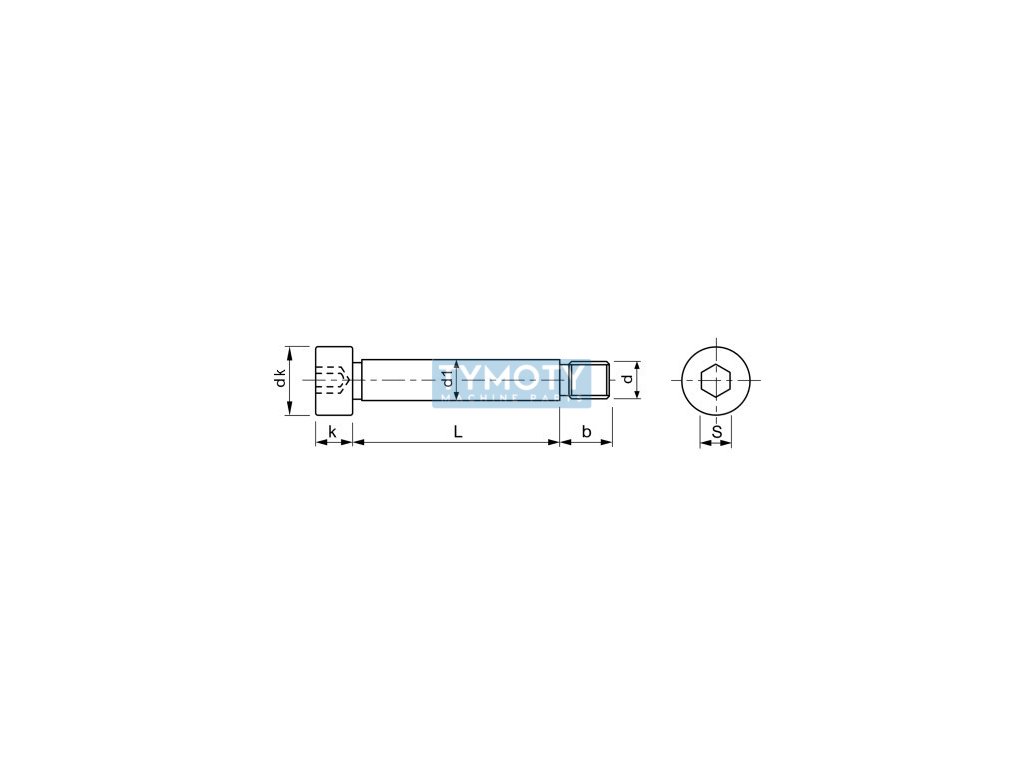

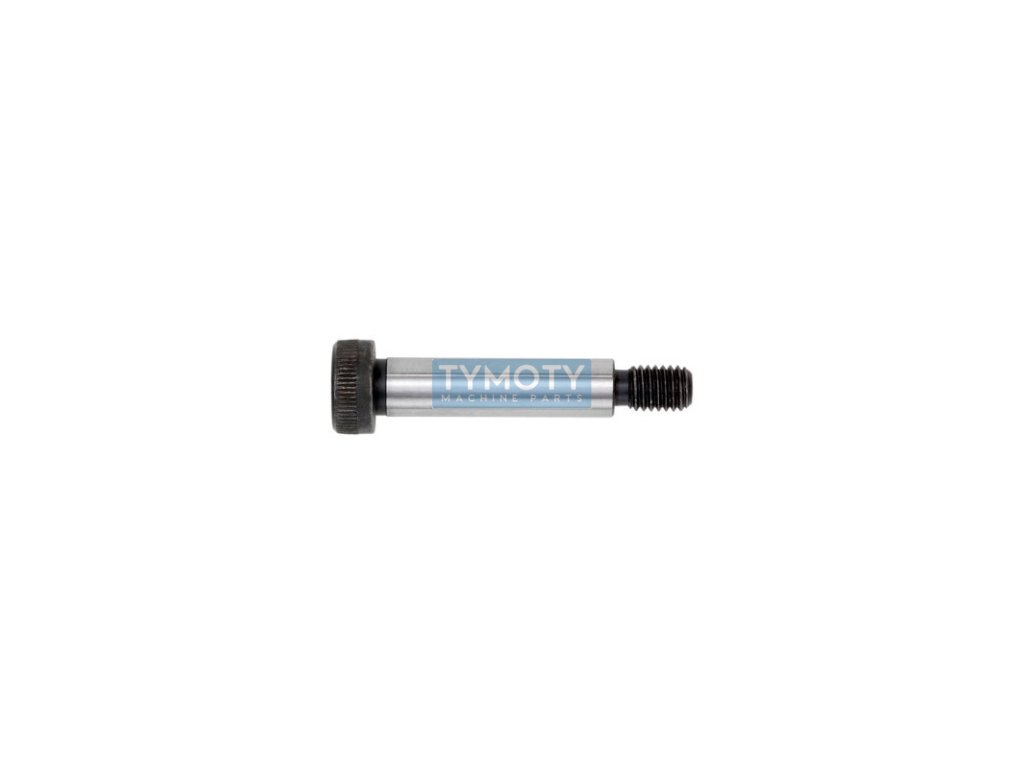

Countersunk allen screw ISO 7379 M12 f9 16x60-12.9
Code: 822971
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > cap screws > Allen key, flush ISO 7379 > steel 12.9 without treatment, tolerance f9 |
|---|---|
| Weight: | 0.112 kg |
| Diameter D (mm): | M12 |
| Diameter d1 (mm): | 16 |
| Diameter dk (mm): | 24,33 |
| Fortress class: | 12,9 |
| Groove type: | internal hexagon |
| Head shape: | cylindrical |
| Height k (mm): | 11 |
| ISO standard: | 7379 |
| Length L (mm): | 60 |
| Material: | steel |
| Pitch: | 2 |
| Surface finish: | without modification |
| Thread length b (mm): | 18 |
| Thread type: | metric |
| Width s (mm): | 8 |
