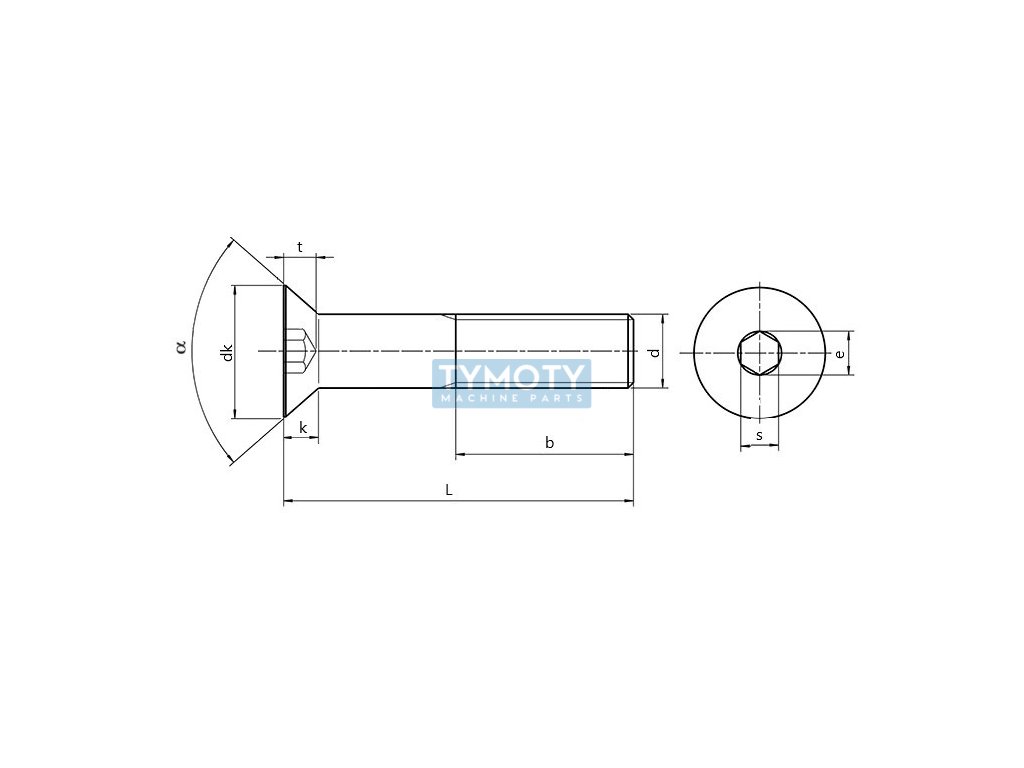

Countersunk Allen screw DIN 7991 M14x80-10.9 galvanized
Code: 829907
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > countersunk head screws > Allen key DIN 7991 > galvanized steel 10.9 |
|---|---|
| Weight: | 0.086 kg |
| CSN standard: | 021144 |
| Diameter D (mm): | M14, 27 |
| DIN standard: | 7991 |
| Fortress class: | 10,9 |
| Head shape: | profound |
| Height H (mm): | 8,4 |
| Height H2 (mm): | hex |
| ISO standard: | 10642 |
| Material: | steel |
| Pitch: | 2,00 |
| Surface finish: | zinc white |
| Thread length b (mm): | 40 |
| Thread type: | metric |
| Width B1 (mm): | 10 |
